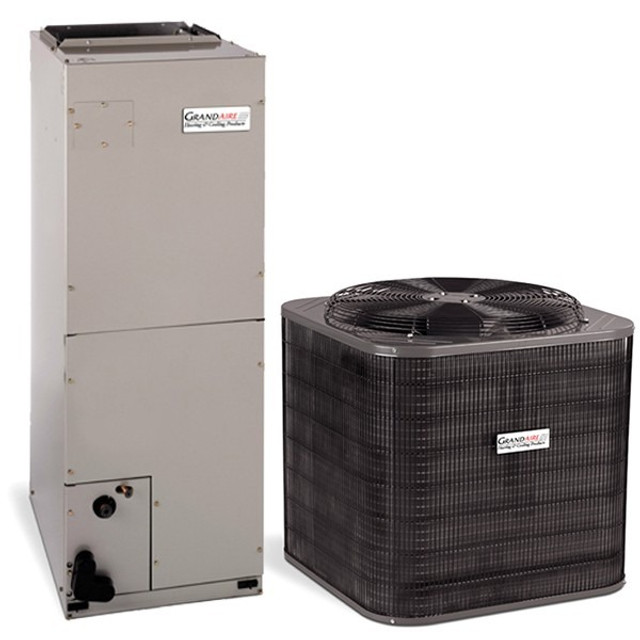

This is what you get:
- Condenser Model#W4H5S48AKAAA+
- Air Handler Model#WBHL484AC
- FREE Shipping!
Specifications:ICP-EcoTemp MODEL
EcoTemp Is made by ICP(International Comfort Products)The same Company that Manufactures Carrier Brand

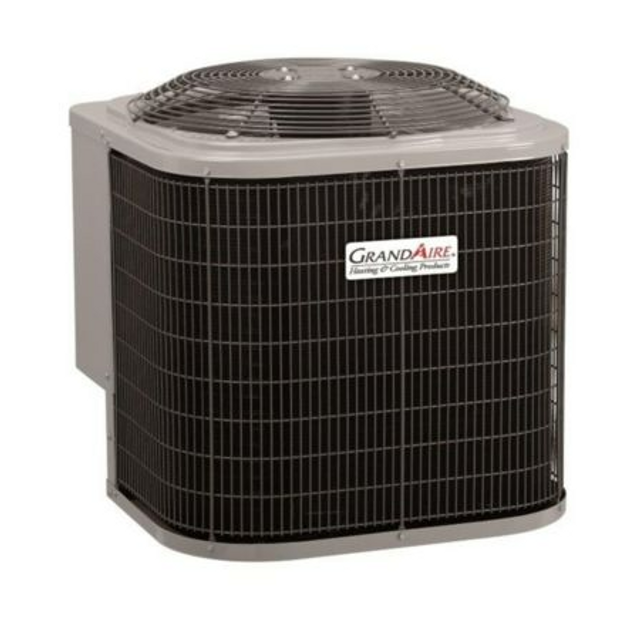

Outdoor Unit Details W4H5S48AKAAA condenser
Tonnage: 4 Ton
Cooling Capacity (btu): up to 48000 Btu
Heating Capacity (btu): up to 48000 Btu
SEER / EER: 14.3/11.7-EER
HSPF: 8.2
Voltage-HZ / Phase: 208/230 60 1 Phase
Max Breaker Size: 40 Amps
Min/Max Volts: 197/253
Refrigerant Type: R410 A
Suction Line Size: 7/8″
Liquid Line Size: 3/8″
Unit Dimensions: 31.187″W x 31.187″D x 28.437″H
Sound Level: 78 DB
Weight: 197 Lbs

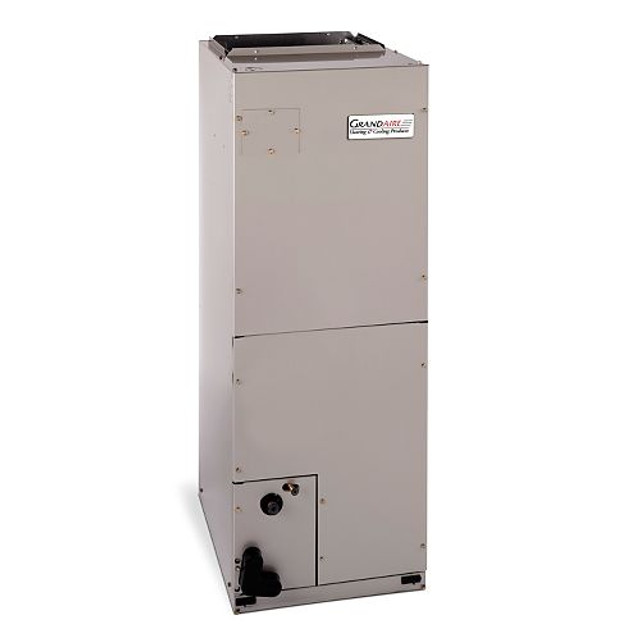

ICP -EcoTemp Model Air Handler
Multi-Position Air Handler is suitable for use with r R-410A
Indoor Unit (Multi Position – Multi Speed) MODEL WBHL484AC
Tonnage: 4 Ton
Cooling Capacity (btu): 48,000 BTU
Electric Heat Capacity: 5,8,10,15,20kw kW
Voltage – HZ / Phase: 208/230 / 1 Phase
Min/Max Volts: 197/253
Max Breaker Size: 15 amps
CFM High/Low 0.3: 1679 high / 1221 low
Unit Dimensions: 21.125″ W x 22.062″ D x 49.625″ H
Supply Plenum Dimensions: 19.25” W x 11.” D
Return Plenum Dimensions: 19.125” W x 19.8” D
Suction Line Size: 3/4″
Liquid Line Size: 3/8″
Blower Motor HP: 3/4 ECM
Blower Motor Speed: Multi Position -5 Speed ECM
Refrigerant Type: R410A
Shipping Weight: 157 Lbs
FEATURES:CONDENSER
- REFRIGERATION CIRCUIT Scroll compressors on all models
- Suction line accumulator factory installed
- Integrated solid state control with Time−Temperature Defrost
- High and Low pressure switches
- Copper tube / aluminum fin coil
- Easy Access service valves on all models
- External high and low refrigerant service ports
- Only two screws to access control panel
- Factory charged with R−410A refrigerant
- Painted cabinet finish over galvanized steel
- Coated inlet grille with 3/8” (10mm) grille spacing for extra protection (hail guard)
- AHRI Certified, ETL Listed
FEATURES:AIR HANDLER
- Factory installed TXV metering device
- Sweat connections
- Aluminum Tube, Aluminum Fin Evaporator
- Primary and secondary drain fittings
- Multiple electrical entry locations
- Time delay relay (TDR) Field installed Heat Strips from 5 kW − 20 kW
- Tested & Certified to achieve a 2% or less leak rate at 1.0 inch water column
- 1 inch thick insulation with R value of 4.2
- Bult in 1″Filter Rack-(filter sold separately)
- ECM 5−speed motor
- Multiposition installation- upflow or horizontal left standard, horizontal right with minor modification (field convertible to downflow with available accessory kit)
- Low voltage circuit protective fuse (3amp) inline on wire harness
DONT FORGET TO ORDER THE ACCESSORIES!
- Thermostat Wire
- Condenser Pad
- Flexible Duct R6/R8
- Insulated Copper Linesets
- Pan Overflow Shutoff Switches
- Plenums
- Mastic
- Glass Fab
- Aluminum Duct Tape
- Black Cloth Duct Tape
- Ductboard 1″ a 1-1/2 inch thick
- Lineset Flush
- Vacuum Pumps
- R22 and 410a Refrigerant
- WE HAVE IT ALL! for your installation!
