Description

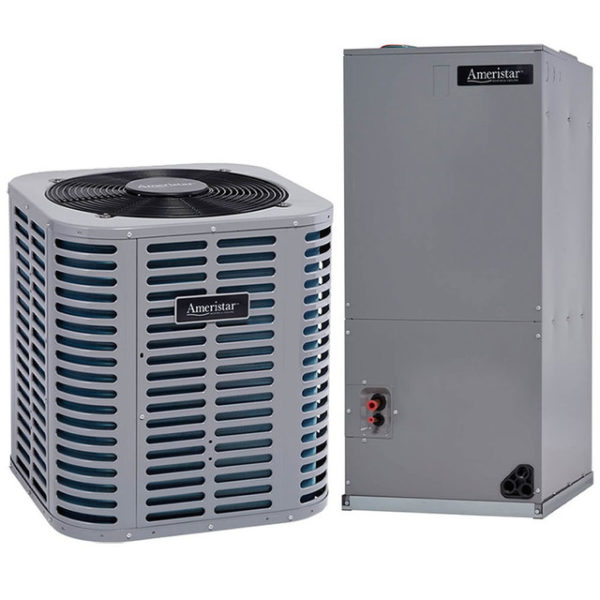

This is what you get:
Ameristar is an Ingersoll Rand(Trane)product
- Condenser Model#M4AC4042E1000A (This is not a heat pump)
- Air Handle Model#M4AH4P48E1C00A
Specifications:

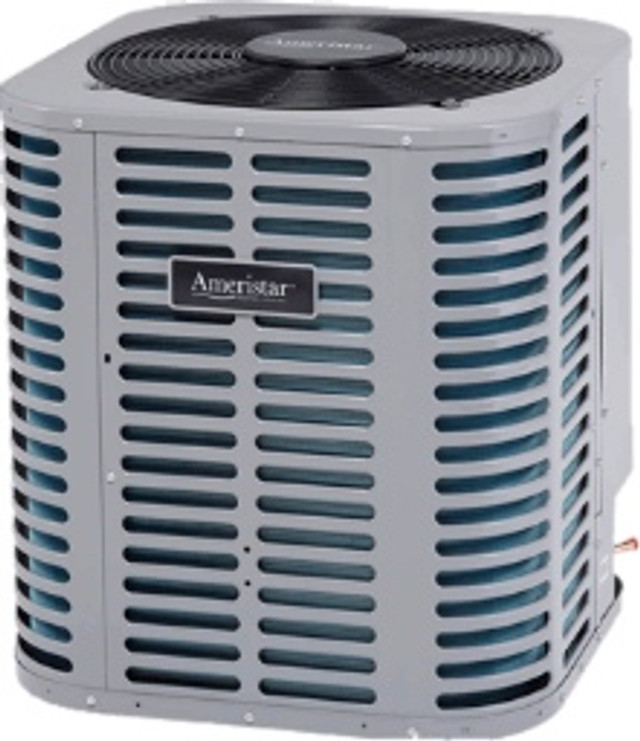

Outdoor Unit Details M4AC4042E1000A Condenser
| Tonnage | 3.5 Ton |
| Cooling Capacity (btu) | up to 42000 Btu |
| SEER | 14 Seer |
| EER | 12.2 |
| Voltage-HZ / Phase | 208/230 60 1 Phase |
| Max Breaker Size | 35 Amps |
| Min/Max Volts | 208/230/1/60 |
| Refrigerant Type | R410 A |
| Suction Line Size | 7/8″ |
| Liquid Line Size | 3/8″ |
| Unit Dimensions | 28″W x 28″D x 33.2″H |
| Sound Rating | 76 |
| Weight | 190 Lbs |
Standard Features
- A compact design and small footprint require minimal yard space
- Designed for quiet operation
- Painted, galvanized steel cabinets resist rust
- Feature scroll compressors, which provide smoother, more quiet operation than conventional compressors
- 24V low-voltage control provides added safety.
- 10-year registered limited warranty;* 5-year base limited warranty (R-410A Models)
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

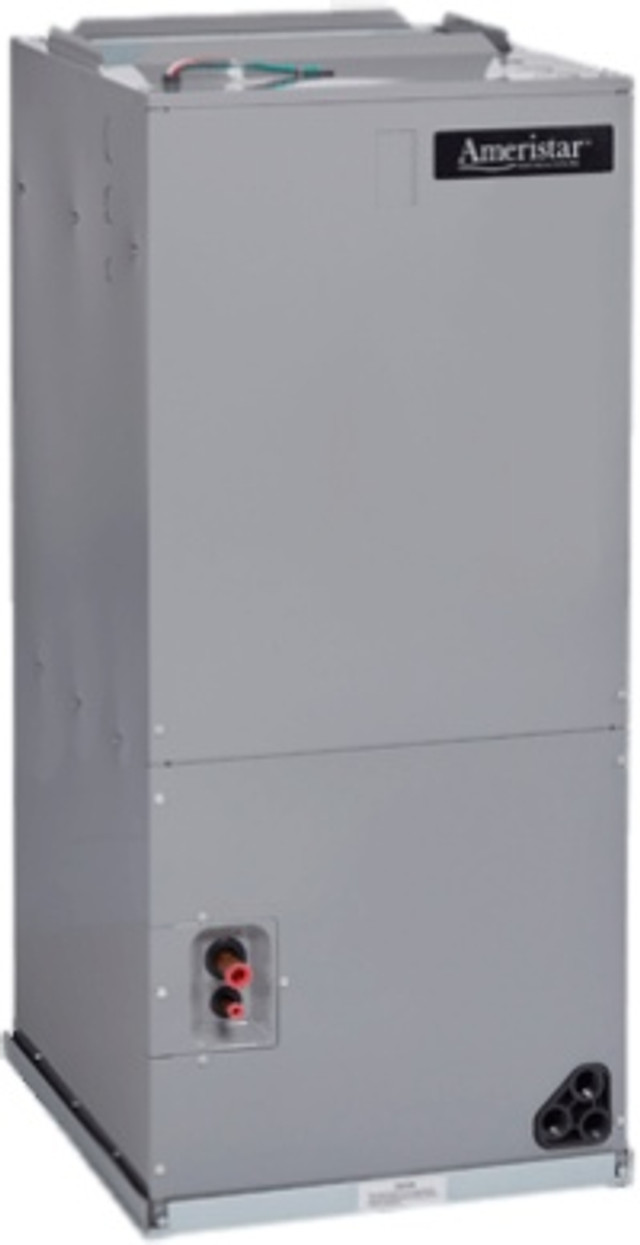

Specifications – Indoor Unit (Multi Position – Multi Speed)
| Tonnage | 4 Ton |
| Cooling Capacity (btu) | 48,000 BTU |
| Electric Heat Capacity | 5,8,10,15,20KW |
| Voltage – HZ / Phase | 208/230 / 1 Phase |
| Max Breaker Size | 15 amps |
| CFM High/Low 0.3 | 1647/1157 |
| Unit Dimensions | 22″ W x 24″ D x 54-1/4″ H |
| Supply Plenum Dimensions | 19.5” W x 10-5/16” D |
| Return Plenum Dimensions | 20.5” W x 22.5” D |
| Suction Line Size | 7/8″ |
| Liquid Line Size | 3/8″ |
| Blower Motor Speed | Multi Position – Multi Speed |
| Refrigerant Type | R410A |
| Shipping Weight | 159Lbs |
Dont forget to call for the Accessories
- Condenser tie downs
- Single Point Wiring Kit
- Condenser Pad
- Thermostat Wire
- Overflow Shutoff Switch
- Breaker upgrade
- Disconnect box
Call toll free 1(855)473-6484
WE INSTALL IN FLORIDA !! Through our INSTALLATION NETWORK and in many other states..Dont forget to call and Join our network for free and get further discounts
See below for Details or CALL Toll Free 1(855) 473 6484
