Description

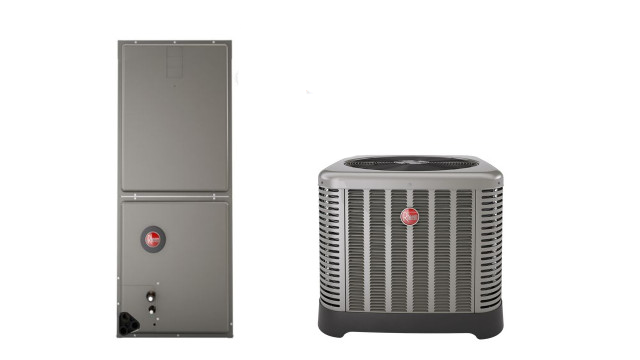

NEW RHEEM 3.5 TON 15.2 SEER2 STRAIGHT COOL SPLIT SYSTEM– NOT A HEAT PUMP!!!
This matchup provides a total SEER2 rating of 15.2 which you can check with the AHRI #: 209429691 at www.AHRIDirectory.org

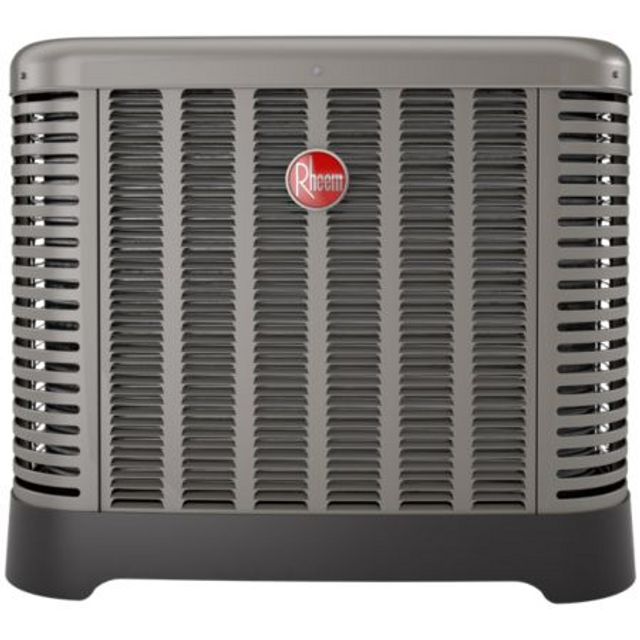

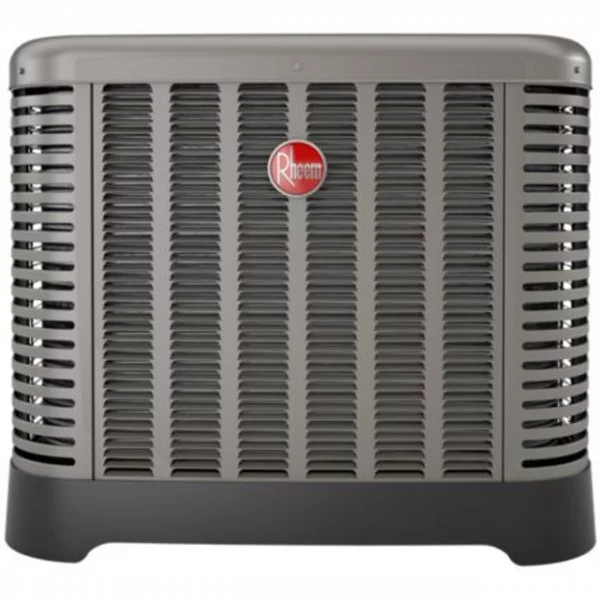

RA14AZ42AJ1NA– 3.5 Ton 14.3 SEER2 Condenser
Features and Benefits
- Lighter Footprint & Less Environmental Impact from New 7mm Condenser Coil provided by a decrease in refrigerant requirements and an overall weight reduction
- Efficient Cooling up to 14.3 SEER2/11.7 EER2
- PlusOne Expanded Value Space: 3in- 4in- 5 in service
- valve space- provides a minimum working area of 27-square inches for easier access
- PlusOne Triple Service Access: 15 in wide, industry leading corner service access- makes repairs easier and faster. The two fastener, removable corner allows optimal access to internal unit components. Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly
- System Matching Simplicity- matches to all tiers of gas furnaces
- Modern cabinet aesthetics- High curb appeal with visually appealing design
- Curved louver panels- provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
- Diagnostic service window with two-fastener opening- provides access to the high and low pressure.
- External gauge port access- allows easy connection of “low-loss” gauge ports
- QR code- provides technical information on demand for faster service calls
- Fan motor harness with extra-long wires allows unit top to be removed without disconnecting fan wire.

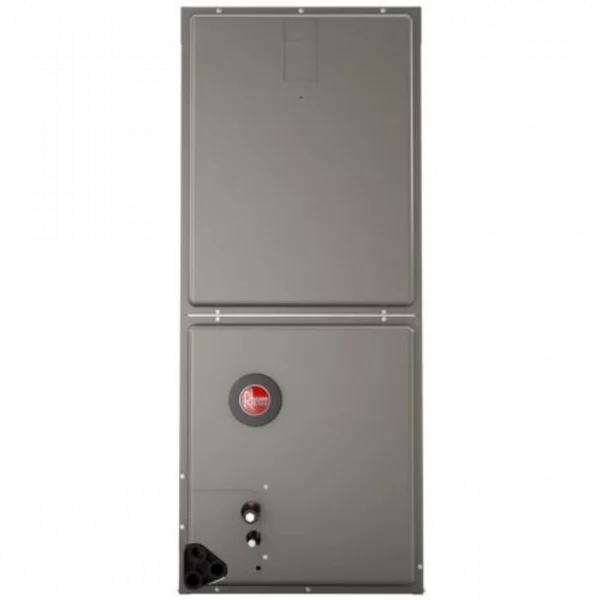

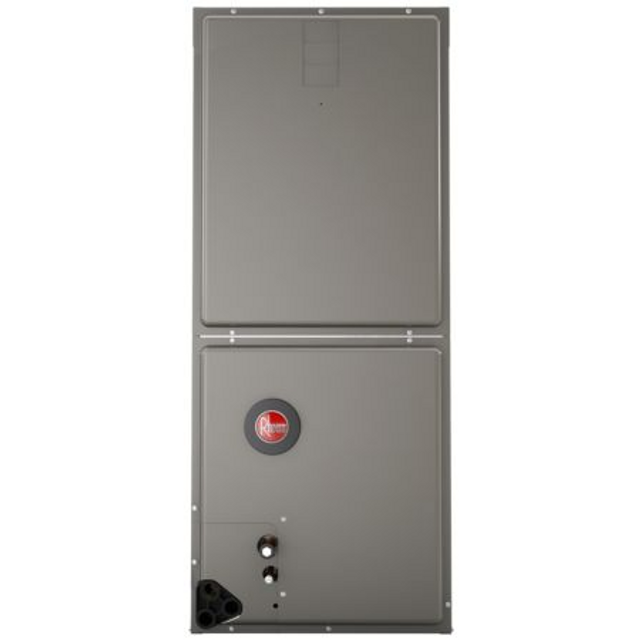

RH2TZ4821STANNJ– 4 Ton 2 Stage Constant Torque Motor (ECM) Air Handler
Features and Benefits
- RH2TZ features a Constant Torque motor (ECM) which provides enhanced SEER2 performance with most Rheem outdoor units.
- Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
- Factory-installed indoor coil.
- Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics
- Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect
- 11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep.
- All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
- Enhanced airflow up to .7” external static pressure.
- Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
- Suitable for application in mobile homes.
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE Standard 193.
